01
Lay Out
Define the line, lane or boundary that needs to remain visible.
SOS LASERLANE
Laser Pathways & Staging
Red, green and blue laser-defined lanes, staging markers and zone boundaries for flexible industrial layouts.
Best fit: Straight high-visibility lanes, staging lines and boundaries.

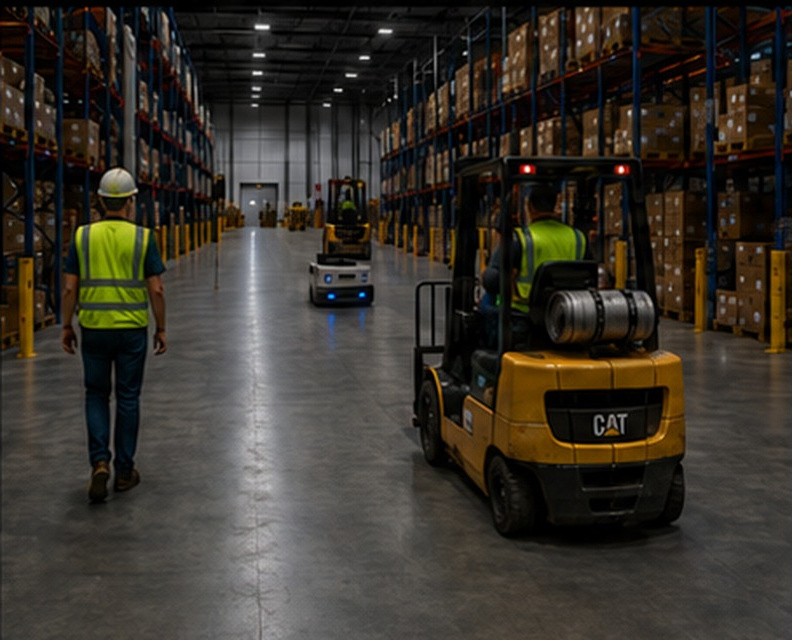

BEFORE
AFTER
↔
High-Visibility Lines and Boundaries
SOS LaserLane
Red, green and blue laser-defined lanes, staging markers and zone boundaries for flexible industrial layouts.
Laser pedestrian walkways
Staging lanes
Vehicle boundaries
Restricted-zone lines
Temporary layouts
Overhead mounting
Red / green / blue line options
Multi-lane applications
HOW IT WORKS
A Typical LaserLane Sequence
The exact sequence is configured for the application, but the system logic commonly follows this pattern.
02
Mount
Position line lasers overhead or outside normal impact zones.
03
Project
Red, green or blue lines create a clear visual boundary on the floor.
04
Adapt
Layouts can be adjusted without repainting the floor when operations change.
TYPICAL SYSTEM ELEMENTS
Technology That May Be Used
The final bill of materials depends on the site, but these are common components in this solution family.
Industrial line lasers
Adjustable mounts
Power / control hardware
Optional switching
Multiple line colors
Protective mounting provisions
DESIGN CONSIDERATIONS
Application Details Matter
Ceiling height, line length, ambient lighting, floor reflectivity, mounting vibration, eye-safety requirements and the desired color convention should be reviewed for each application.
COMMON APPLICATIONS
Where LaserLane Can Fit
The final design depends on traffic, visibility, equipment and operating logic, but these are common application types.
Warehouse walkways
Staging lanes
Loading / unloading areas
Temporary production layouts
Defined vehicle travel lanes
RELATED SOS SOLUTIONS
Technologies That Often Work Together
Many applications combine more than one SOS solution family.
NOT SURE WHICH SOS SOLUTION FITS?
Start With the Operating Problem
A crossing, blind spot, dock, traffic control or mobile equipment problem may use more than one SOS solution family. SOS can help evaluate the application before you choose the technology.
Have a Laser Pathways & Staging Application?
Share the traffic pattern, facility area or operating challenge and SOS can help evaluate the right combination of technology and controls.
